How to Manage Panel Cladding Alignment Issues: A Technical Guide

The visual integrity of a building’s facade is often the most immediate indicator of its underlying engineering quality. When large-format cladding panels—whether sintered stone, aluminum composite, or architectural ceramic—fail to maintain a consistent grid, the result is more than a mere aesthetic disappointment. Misalignment often signals deeper systemic tensions within the building envelope, ranging from substructure deflection to improper thermal expansion allowances. How to Manage Panel Cladding Alignment Issues. For the architect and the installer, the challenge lies in reconciling the rigid, geometric demands of modern design with the inherently unruly nature of construction materials and structural movement.

In the contemporary architectural landscape, the trend toward flush transitions and minimal joint widths has narrowed the margin for error to a fraction of an inch. A panel that is out of plumb by even three millimeters can create a “stair-stepping” effect that is amplified across the entire elevation, particularly when highlighted by the raking light of morning or late afternoon. Addressing these tolerances requires an approach that moves beyond simple leveling; it demands a comprehensive understanding of how static loads, wind pressures, and diurnal temperature swings interact with the mechanical fasteners that hold the skin to the skeleton.

The complexities of alignment are compounded by the scale of modern projects. As buildings grow taller and panels grow larger, the cumulative effect of minor installation variances can lead to “panel creep.” By the time the installers reach the upper floors, the joint lines may no longer align with the window heads or parapet caps. Navigating these issues requires a disciplined protocol of constant measurement, adjustable substructures, and a refusal to treat the facade as a static object. This article serves as a technical manual for those navigating the high-stakes environment of large-format cladding, focusing on the prevention, diagnosis, and rectification of alignment failures.

Understanding “how to manage panel cladding alignment issues”

To effectively master how to manage panel cladding alignment issues, one must first distinguish between installation error and structural deflection. A frequent oversimplification in the field is to blame the installer for every crooked joint. However, a cladding panel is often the victim of the substrate it is attached to. If a concrete slab deflections slightly under its own dead load after the panels are hung, the panels will naturally follow that movement. A sophisticated management plan accounts for this post-installation settlement by using substructures that allow for three-dimensional adjustment.

Oversimplification also exists in the assumption that tight joints equate to high quality. In fact, forcing panels into a tight, perfect grid without adequate expansion gaps is often the primary cause of future misalignment. When the building heats up, those panels expand. If there is no room to grow, they will bow, “tent,” or shear their fasteners, resulting in a permanent loss of alignment. To truly understand how to manage panel cladding alignment issues, the practitioner must view the facade as a dynamic system that requires controlled looseness to maintain perceived precision.

Furthermore, there is a psychological component to alignment. Humans are remarkably sensitive to vertical plumb lines but less so to horizontal level lines across vast distances. A strategy for alignment management often prioritizes the continuity of vertical datum lines, as these are the most scrutinized by the eye from the street level. Managing alignment is therefore as much an exercise in visual hierarchy as it is in mechanical engineering.

Contextual Evolution: From Masonry to Engineered Skins

Historically, architectural alignment was managed through the forgiveness of mortar. In traditional masonry, the mason could subtly adjust the thickness of the mortar joint by a millimeter here and there to correct for a slightly unlevel foundation. The joint was the buffer. As we moved toward rainscreen systems and dry-joint cladding, we removed that buffer.

The transition to unitized and stick systems in the late 20th century moved the alignment challenge from the site to the shop. While this improved precision, it introduced a new problem: the clash between the rigid unit and the irregular building. The evolution of the modern adjustable bracket—often involving serrated surfaces or sliding clips—was the industry’s response to this tension. We have moved from a world of static fixing to kinetic management, where the facade is designed to be tuned like an instrument during and after installation.

Conceptual Frameworks for Geometric Control

Professionals use specific mental models to maintain control over the vast surface area of a building skin.

1. The Datum Point Framework

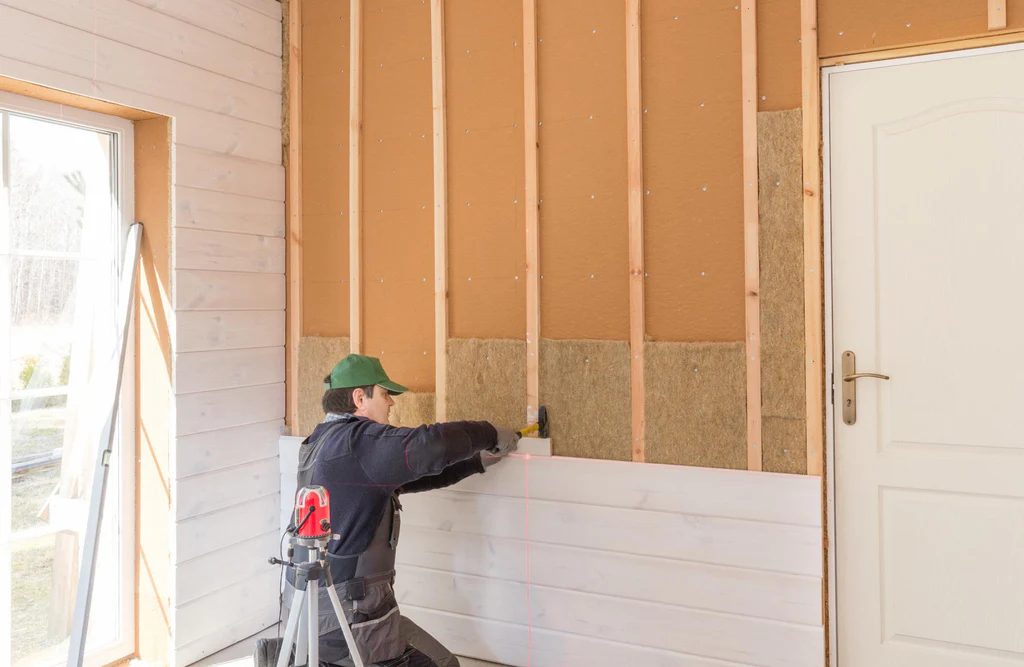

This model dictates that alignment must never be measured from panel to panel. If you measure panel B from panel A, and panel C from panel B, a 1mm error at the start becomes a significant error at the end of the wall. Instead, every panel must be referenced back to a master datum—a laser-defined coordinate in space that is independent of the panels themselves.

2. The Tolerance Buffer Model

This framework assumes that error is inevitable. Instead of aiming for zero error, the design governs where the error will be hidden. This usually involves control joints at every floor slab or window module, where the joint width is slightly larger to “reset” any cumulative misalignment that has occurred in the previous section.

3. The Thermal Expansion Loop

A mental model that treats the facade as a living organism. It assumes that at 2:00 PM in July, the alignment will look different than at 2:00 AM in January. Alignment management involves calculating the mean temperature of installation so that the panels sit in their neutral position during the most common weather conditions.

Categories of Alignment Variance and Mechanical Trade-offs

Alignment issues generally fall into three categories, each requiring a different mechanical response.

1. Plumb and Level (Vertical/Horizontal)

The most common issue where panels are tilted or the horizontal rows are not parallel.

• Trade-off: Correcting this requires shimming the substructure. Using too many shims can reduce the structural integrity of the fastener by increasing the “lever arm” on the bolt.

2. Planarity (The “In-and-Out” Variance)

When panels are not in the same plane, creating “lippage” at the joints. This is particularly noticeable on high-gloss or dark-colored facades where reflections are distorted.

• Trade-off: Solving planarity often requires a secondary rail system, which increases the cavity depth and can complicate the flashing at windows and doors.

3. Joint Uniformity (The Gap Variance)

When the space between panels is inconsistent.

• Trade-off: This is often a symptom of panel creep. Correcting it midway through an elevation requires re-spacing multiple rows, which is labor-intensive and may require new holes in the substructure.

Substructure Adjustability Comparison

System Type	X-Axis Adjust	Y-Axis Adjust	Z-Axis Adjust	Cost Impact
Fixed Clip	None	Minimal (Shim)	Minimal	Low
Sliding Rail	High	Low	Moderate	Medium
Three-Way Adjustable	High	High	High	High
Unitized Cassette	Moderate	Moderate	Moderate	Very High

Real-World Scenarios and Corrective Decision Logic How to Manage Panel Cladding Alignment Issues

Scenario A: The Wind-Sway High-Rise

During the installation of a 40-story tower, the building experiences significant sway due to high winds, making laser-leveling difficult.

• The Logic: Shift to mechanical jigs that lock onto the previously installed floor’s datum. Accept that the global alignment will be trued once the building is fully loaded and the crane is removed.

• Corrective Action: Leave the final closure panels at the corners until the end of the project to absorb the accumulated sway variance.

Scenario B: The Thermal Shadow Effect

A dark-cladded building is partially shaded by a neighboring tower. The panels in the sun are 40 degrees hotter than the panels in the shade.

• The Logic: The joints in the sun will appear tighter than the joints in the shade.

• Corrective Action: Do not adjust the joints to look the same in the afternoon heat. If you do, when the sun moves, the corrected joints will become dangerously wide or out of plumb.

Economic Dynamics: The Cost of Precision vs. Remediation

Managing alignment is a front-loaded cost. The more time spent truing the substructure, the less time spent fixing the panels.

Direct vs. Indirect Costs

The direct cost of a 3-way adjustable bracket is roughly 30% higher than a standard clip. However, the indirect cost of a crew having to remove and re-install a heavy sintered stone slab because of a 5mm misalignment is astronomical, often involving specialized lifting equipment and the risk of panel breakage.

Investment in Alignment Table

Precision Tier	Substructure Type	Labors Hours per m²	Likelihood of Remediation
Basic	Direct-Fix Shims	1.5 – 2.0	High (20%+)
Intermediate	Rail-and-Clip	2.5 – 3.5	Moderate (5–10%)
Precision	Fully Adjustable CNC	4.0 – 6.0	Very Low (< 1%)

Support Systems, Tools, and Strategic Adjustments

Sophisticated alignment management relies on a technological ecosystem:

• Robotic Total Stations: These allow the surveyor to pinpoint the exact 3D coordinate for every bracket, rather than relying on a string line.

• Serrated Brackets: These allow for vertical adjustment in 1mm increments that lock into place once the bolt is tightened, preventing creep over time.

• Compression Gaskets: Used in the joints to provide a visual buffer that can absorb minor variance without being visible to the eye.

• Suction-Based Fine-Tuners: Mechanical tools that attach to the face of two adjacent panels to pull them into a perfect plane while the permanent fasteners are being tightened.

The Risk Landscape: Compounding Failures and Structural Drift

The greatest risk in alignment is Geometric Compounding. This occurs when a small error at the foundation is ignored. By the time the facade reaches the roofline, the drift can be so large that the panels actually interfere with the roof flashing or the maintenance tracks.

• Tolerance Clash: When the building moves left and the facade tries to move right.

• Fastener Fatigue: Constant adjustment and re-tightening can strip the threads of aluminum rails.

• Visual Moire: On ribbed or textured panels, a slight misalignment creates a shimmering, dizzying effect that can be seen from blocks away.

Governance, Maintenance, and Long-Term Stability

Alignment is not “set and forget.”

• Post-Occupancy Audit: A building should be surveyed 12 months after completion to check for settlement drift.

• Torque Governance: A strict protocol for ensuring that every locking bolt is tightened to the manufacturer’s specification. An under-tightened bolt will eventually allow a panel to slip under vibration.

• Maintenance Triggers: If a joint width changes by more than 20% over a 3-year period, it triggers a structural investigation of the substructure.

Evaluation Metrics: Tracking Performance

• Leading Indicator: Rail Plumbness Variance. If the rails are 99% plumb, the panels will follow.

• Lagging Indicator: Joint Width Standard Deviation. Using a digital caliper to measure a percentage of the joints. A high standard deviation indicates a lack of systemic control.

• Documentation Example: “Elevation South-East: Datum 0.0 established. Rail variance < 2mm. Final joint deviation 0.4mm. Approval for panel hanging granted.”

Common Misconceptions and Industry Myths

• Myth: Lasers are always right. Correction: On long elevations in bright sun, laser drift and refraction can occur. Always double-check with a physical plumb bob.

• Myth: Tight joints show better craftsmanship. Correction: Tight joints show a lack of understanding of thermal expansion. A craftsman knows exactly how wide a joint needs to be.

• Myth: You can fix alignment with caulk. Correction: Caulk only hides the gap; it doesn’t solve the planarity or the structural stress that caused the gap in the first place.

Conclusion

The pursuit of perfect symmetry is a battle against the fundamental chaos of a construction site. To successfully how to manage panel cladding alignment issues, one must transition from a mindset of forcing the material to guiding it. By implementing datum-based measurements, utilizing high-adjustability substructures, and respecting the thermodynamic reality of the building envelope, the facade can achieve that rare quality of perceived effortless precision. The beauty of a perfectly aligned facade is not in the absence of error, but in the sophisticated management of the tolerances that made that error invisible.
